Multi Function accurate diabetes blood glucose meter/glucometer

FOB Price :Get A Price/Quote
Min.Order :200 Vial(s)
Certification : ISO9001,ISO13485,CE
Brand Name : VOYAGE
Payment Terms : L/C,T/T,WesternUnion

Contact Now

Product Information

Brand Name	VOYAGE	Certification	ISO9001,ISO13485,CE	Model
Min.Order	200 Vial(s)	Size	CM* CM* CM	Payment Terms	L/C,T/T,WesternUnion
Weight		Customized service		Place Of Origin	Nantong, Jiangsu

Product Description

Certification	CE
Technology	Electrochemical biosensor
Enzyme	Glucose Oxidase
Sample size	About 0.5uL
Testing time	About 5 seconds
Coding method	No coding
Hematocrit range	20-70% or 30-60% (two models)
Result calibration	Plasma-equivalent
Measurement unit	Pre-set with either mg/dL or mmol/L depends on the local standard
Sample type	Fresh capillary whole blood
Primary site	Fingertip
AST (Alternate sites)	Forearm, palm
Memory	300 results with time and date
Test averaging	7, 14 and 30-day average
Battery	1 x coin battery
Battery life	Over 1,000 tests
Test range	10~600 mg/dL (0.6~33.3 mmol/L)
Beep function	Yes
Automatic shutoff	120 seconds after last action
Operation temperature	5°C - 45°C (41°F -113°F)
Operation humidity	R.H. ≦ 10-90%
Test strip storage	2°C ~30°C (36°F - 86°F)
Test strip unopened	24months / 6months

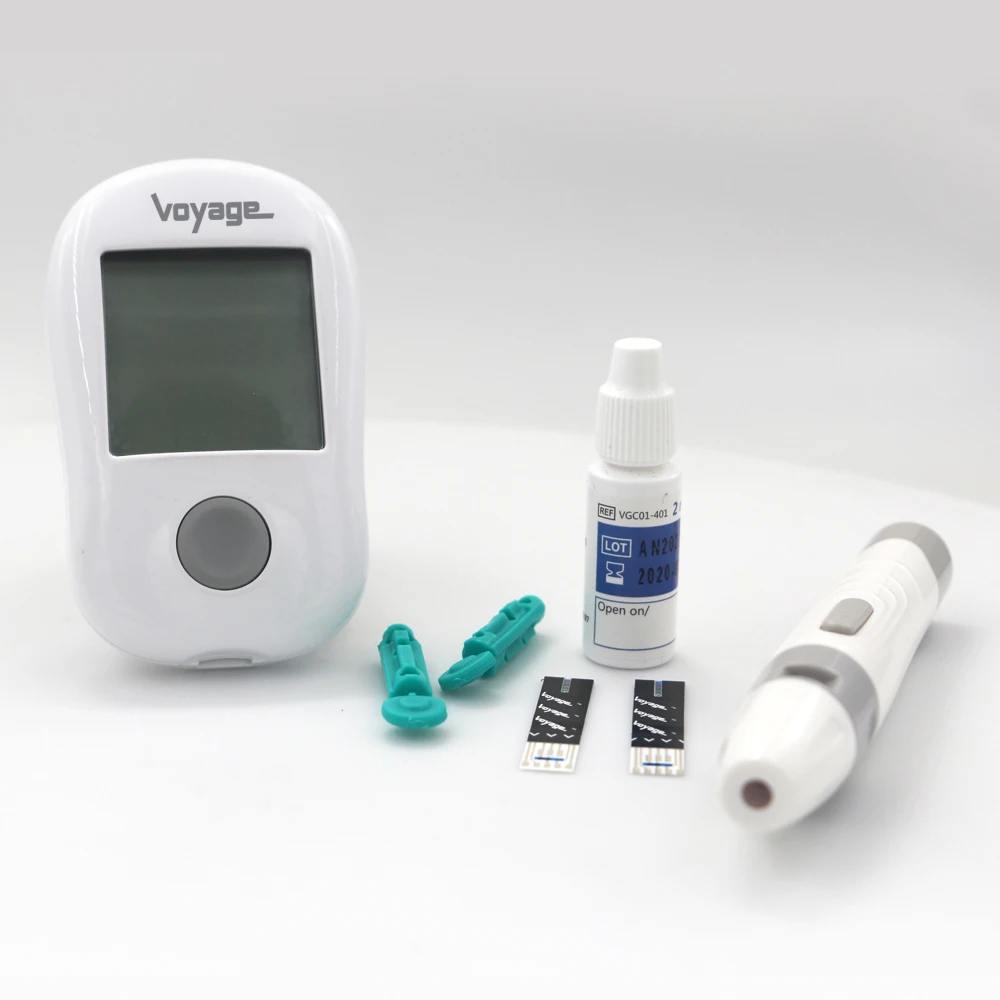

Contents:

√ Blood glucose meter

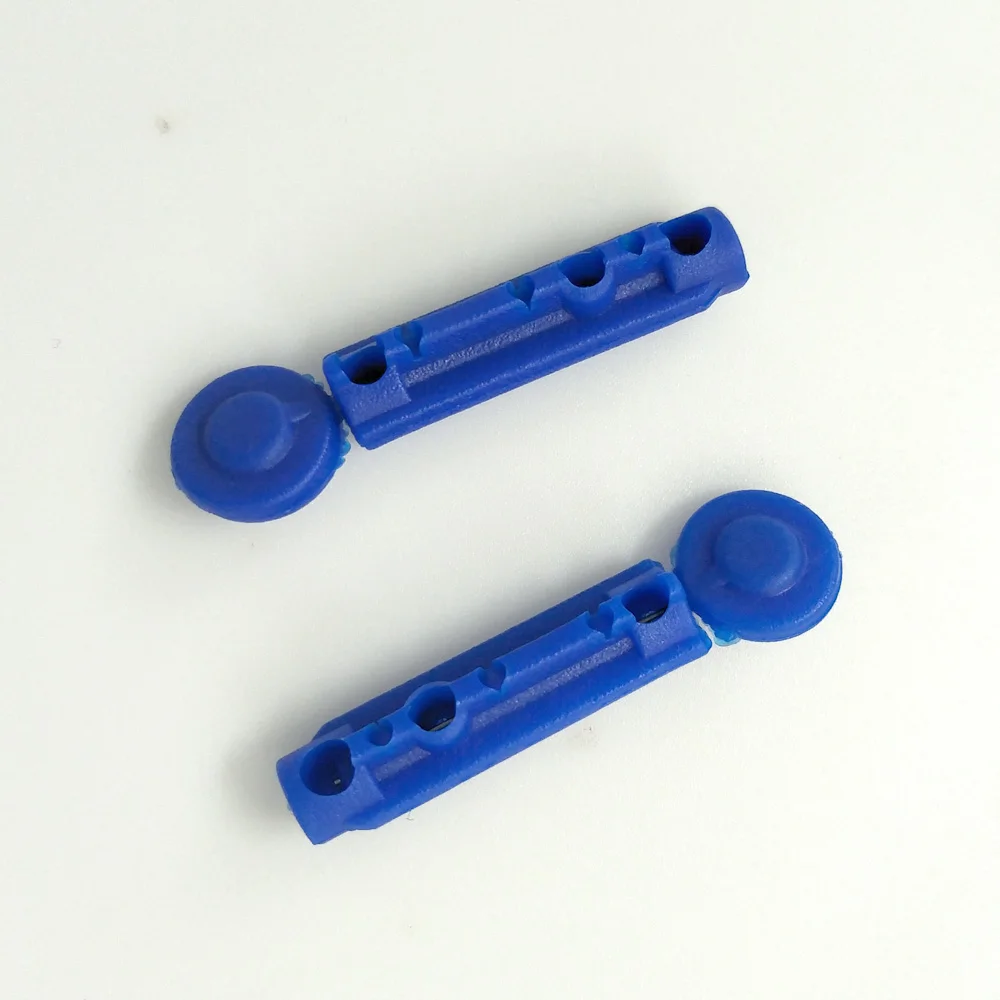

√ 10 test strips√ 10 lancets√ Lancing device√ Control solution N

√ Carrying case√ User' s manual

√ Quick reference quide

√ Logbook

WHY CHOOSE VOYAGE BLOOD GLUCOSE METER?

Small body & light weight
Small sample size– only 0.5µL
8 eletrodes strip, more efficiency and accurate
No coding, for using less step
Neonates, pregnant women, anemia people etc available.
HCT (Hematocrit range) from 0~70%
GDH enzyme, 5s test time
Strip ejector yes
One recharge battery, accompany whole life
Easy meter setting & strip insert

Product principle

The meter is designed to quantitatively measure the glucose concentration in fresh capillary whole blood. The VoyageTM blood glucose test is based on measurement of electrical current caused by the reaction of the glucose with the reagents on the electrode of the test strip. The blood sample is pulled into the tip of the test strip through capillary action. Glucose in the sample reacts with glucose enzyme and the mediator. Electrons are generated, producing a current that is positive correlation to the glucose concentration in the sample. After the reaction time, the glucose concentration in the sample is displayed. The meter is calibrated to display plasma-like concentration results.

Precautions

1.The meter is pre-set to display blood glucose concentration either millimoles per liter(mmol/L) or milligrams per deciliter(mg/dL) depending on which unit of measure is standard in your country. This unit of measure cannot be adjusted.

2.Do not get water or other liquids inside the meter.3.Keep the strip port area clean4.Keep your meter dry and avoid exposing it to extremes in temperature or humidity. Do not leave it in your car.

5.Do not drop the meter or get it wet. If you do drop the meter or get it wet, check the meter by running a quality control test. Refer to Quality Control Test for instructions.

6.Do not take the meter apart. Taking the meter apart will void the warranty.

7. Refer to the Caring for Your Meter section for details on cleaning the meter.

8.Keep the meter and all associated parts out of reach of children.

Other information

Voyage Medical Co., Ltd is a professional company specialized in diagnostic rapid test devices and hospital beds. With our own factory, we provide worldwide customers the service of made-to-order manufacturing at competitive prices and good quality. Meet customer's needs and achieve win-win situation has always been the goal of our efforts.

Customer orders usually will be produced in 15-30 days once order confirmed.
Transit time is provided by the carrier and excludes weekends and holidays. The period would vary, particularly during the holiday season.

Trade Shows

FAQ

1. Can customers get free samples?
Yes sure. We have plenty types of samples in stock, you can get free sample with freight collect.

2. When can customer get the samples?
3-5 days for stock samples.
3~5 weeks for approved customized samples.

3. Can customer combine many items assorted in one container?
Of course yes.

4. What's MOQ?
Normally it's 10,000pcs. 500pcs for some items.

5. What's lead time?
For stock products, it can be sent to you in 10-25 days .
For OEM products, delivery time is about 3~5 weeks.

6. What's the terms of payment?
T/T, Western Union, Paypal is accepted.

7. What's your shipping way?
Samples by express 3-5 days by door to door,
mass goods by sea to your seaport.

8. How do you control the quanlity?
Doing 100% inspection after production;
then do random inspection before packing;
taking pictures after packing.

9. What about after-sale sevices of Voyage?
We shall response you in 12 hours for your requests.
